| engine |
eSP+ PGM-FI 4-stroke fuel injection system, single overhead camshaft, water-cooled |
| Cylinder volume (cc) |
156.93 |
| Cylinder width x stroke (mm) |
60.0 x 55.5 |
| Compression ratio |
12.0 : 1 |
| Clutch system |
Centrifugal automatic dry clutch |
| Transmission system (gear system) |
V-Matic |
| Ignition system |
Full Transistorized |
| Engine start system |
Electric |
| Size Width x Length x Height (mm) |
742 x 1,936 x 1,123 |
| Wheelbase (mm) |
1313 |
| Distance from ground (mm) |
134 |
| Seat height (mm) |
764 |
| Caster Angle / Trail Distance (°’/) (mm) |
26° 30′ / 79 mm |
| Fuel capacity (liters) |
8.1 |
| Frame |
Duplex Steel Cradle |
| Suspension (front) |
Telescopic |
| Suspension (rear) |
Swing unit |
| Net weight (kg) |
133 |

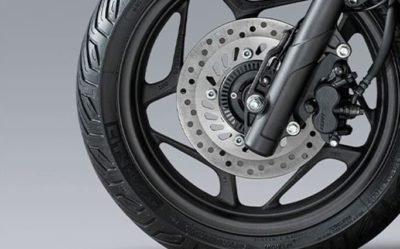

| Brake system (front) |
Disc brakes (ABS) |

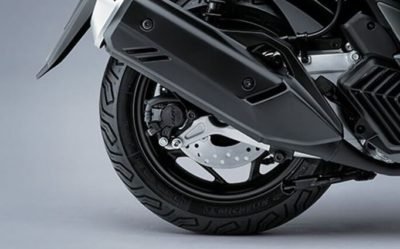

| Brake system (rear) |
Disc brake |
| wheel |
alloy wheels |
| Tire size (front) |
110/70-14M/C 50P Tubeless |
| Tire size (rear) |
130/70-13M/C 63P Tubeless |
| Fuel |
Unleaded, octane rating 91 or higher, or containing up to 20% ethanol. |
